Our products have UL, CE, VDE,ROHS, CQC, TUV, CAS, IP68 certification.Welcome to come to the information, consult the mobilephone +8613828895583

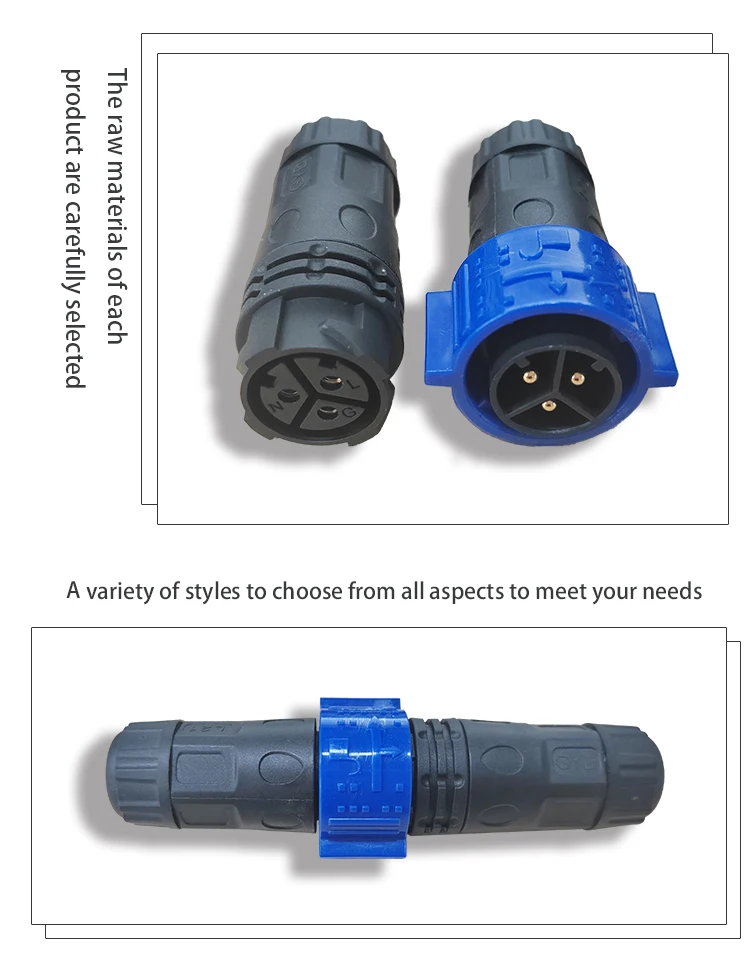

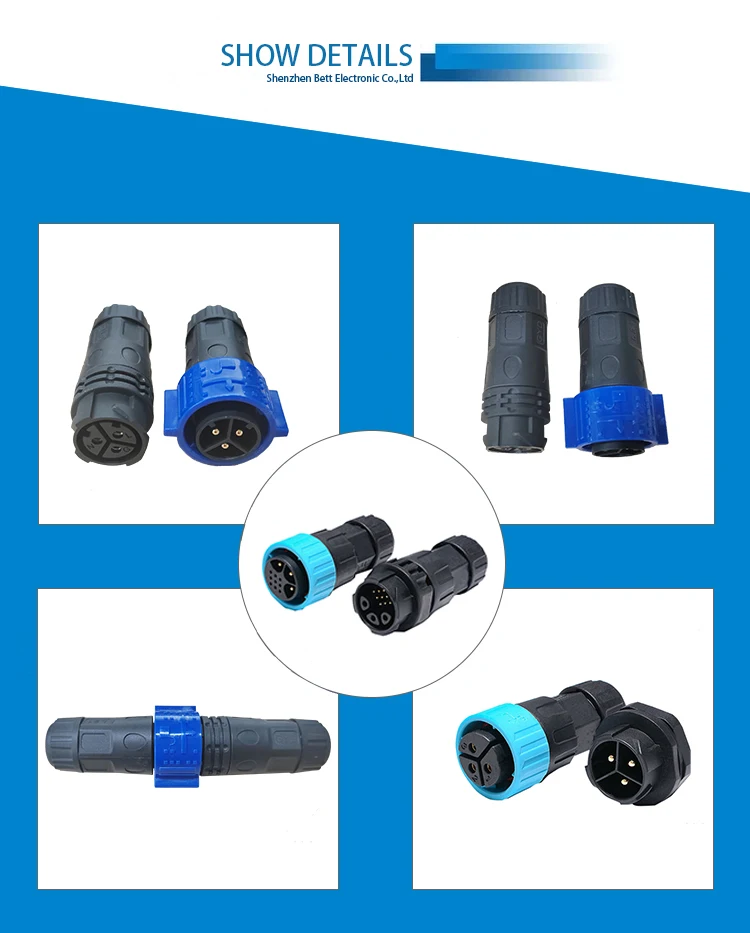

Product Specification
| Brand | Bett |
| scope of application | the LED industry, Marine, terrestrial heat, street lamp, aquaculture, laser, lighting, furniture, screens and so on |
| Types | waterproof plug/waterproof connectors/waterproof connectors/Multi-split waterproof plug/nylon waterproof plug/fabricated waterproof plug |
| Interface type | AC/DC |
| Shape | round/flat look |
| Process | stamping/welding/injection molding |
| Feature | waterproof |
| Contact material | pure phosphor copper |
| Joint material | PVC/PBT/PA66 / PC + ABS |
| Some conclusions | 2-12 core |
| Pin number | 2-12 needle |
| line length | any (mm) |
| Form | socket, plug stamping or injection after welding |
| Rated voltage | 24 V DC 0 (AC 110 V, 110 V) |
| Current rating | 1-50A |
| Breakdown voltage | 1500 V or higher (special require should be mentioned in advance) |
| Working temperature | - 40 ~ 105 ° C |
| Protection grade | IP65 - IP68 (other requirement. When ordering, please put forward) |
| Wire materials | PVC, rubber, silicone, PE and so on, other according to customer requirements, routine for gb RVV sheath line |
| Certification | can according to customer's requirements with CCC, VDE, UL, ROHS, SGS, etc all kinds of wire |
| Appearance color | black, white, transparent, etc |
| Normal product | joint is made of PVC, wire type for CCC gb RVV sheath line, regular length for each 200 mm Can be designed and manufactured according to customer demand orientation, non-standard products |
| Some conclusions | 2 core |
| Cable inside section | 0.75 square (normal) |
| Cable length | any long can be customized for customer request, (20 cm) regular long male female each When ordering, please indicate some conclusions, insider cross-sectional area square number, color, line length, tail decortication and wetting length (normal is 3 cm and 3 mm), the other orders are required to submit |
| Cable length | any long can be customized for customer request, (20 cm) regular long male female each When ordering, please indicate some conclusions, insider cross-sectional area square number, color, line length, tail decortication and wetting length (normal is 3 cm and 3 mm), the other orders are required to submit |
